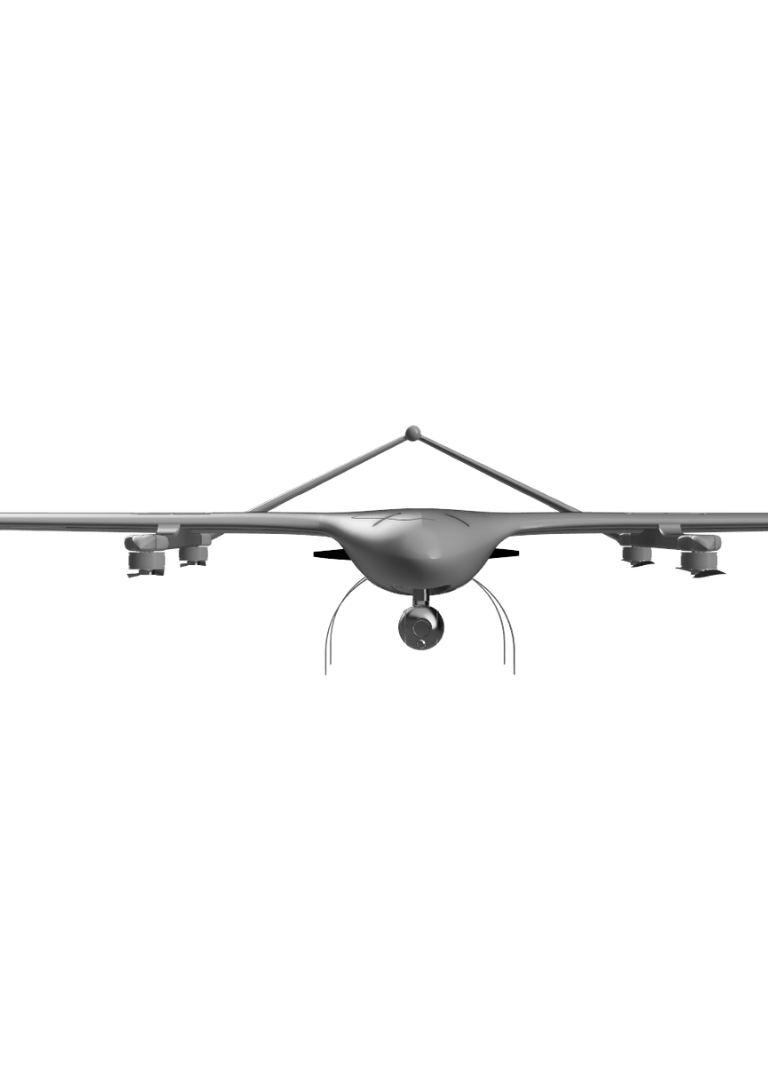

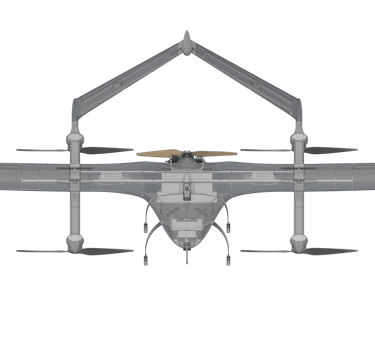

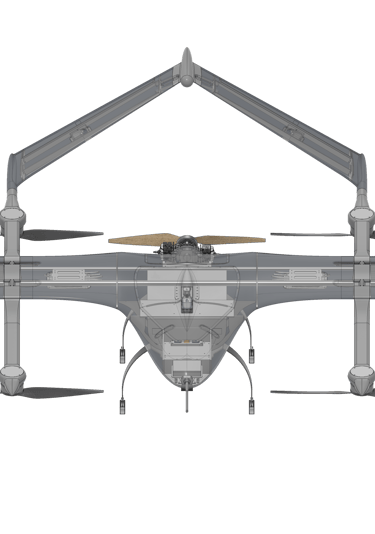

GAZOLIN VTOL UAV

• Wingspan: 4,000 mm

• Overall Length: 2,000 mm

• Overall Height: 500 mm

• Maximum Take-off Weight: 40 kg

• Maximum Payload Capacity: 3 kg

• Endurance: 6 hours

• Maximum Speed: 110 km/h

• Stall Speed: 60 km/h

• Cruise Speed: 75 km/h

• Maximum Operating Altitude: 5,000 m

• Maximum Range: 225 km

• EVLOS Communication Range: 80 km

• Maximum Take-off/Landing Wind Speed: 16 m/s

• Operational Wind Limit: 20 m/s

• Operating Temperature Range: -10°C to +60°C

• Maximum Operational Precipitation: 6 mm/hour

CAPABILITIES

Its fully autonomous mission capability ensures reliable navigation, route planning, and safe return-to-home functions even under complex operational conditions. Designed for joint interoperability with other unmanned platforms, the aircraft features a modular payload structure—supporting EO/IR/LRF Pro cameras, multispectral sensors, and mission-specific integrations.

Core Capabilities

• Fully autonomous flight system

• Runway-independent VTOL take-off and landing

• Below-cloud operations capability

• Two-person transport, deployment, and maintenance

• ISR missions with EO/IR/LRF payload

• Target coordinate generation

• Autonomous return-to-home and landing on link loss

• Target detection and tracking

• Mobile deployment capability

• Redundant telemetry architecture

Optional Capabilities

• Precision landing on moving platforms

• GNSS-independent mission capability

• Basic flight simulator

• Payload options:

  • EO/IR/LRF Pro camera

  • Multispectral camera

  • Mission-specific sensor integrations

• GPS/GNSS Anti-Jam system

• Moving target detection

• Border and coastal security

• Anti-smuggling and counter-terrorism operations

• Public safety missions

• Narcotics crop detection

• Urban thermal mapping

• Wildfire prevention and monitoring

• Post-disaster assessment

• Environmental pollution detection

• Agricultural monitoring and analysis

• Oil & gas pipeline surveillance

• Power transmission line inspection

• Search and rescue operations

• Artillery target detection

• Mapping and cartography

Application Areas
